MIC系列自動混合機
MIC系列混合機是料斗循環可移動式混合機，整個工作用可編程控制器PLC自動控制。裝有原料料斗推上工位后，控制系統自動提升并與攪拌頭結合鎖緊。然后料斗與攪拌頭一起不同角度翻轉，在翻轉過程中對原料進行混合。
主要特點：
*料斗是循環可移動式，生產效率高。
*料斗翻轉同時機械攪拌。
*料斗的定位、提升、鎖緊及松開自動控制。
*易于清機和維修，換色方便
*PLC全自動控制混合過程
*混合均勻，無固化顆粒。
*操作安全，高產出量

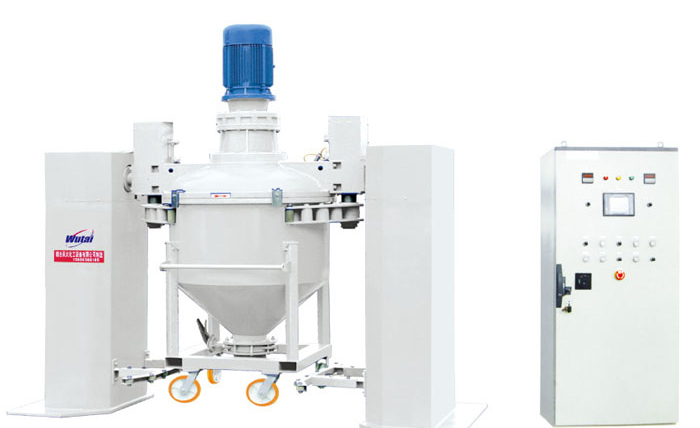

MIC container mixer
This container mixer is hopper recycling movable mixer ,PLC automatic control the whole process ,The hopper filled with raw material will be automatic lifted and securely connected with the stirring head. Then The stirring head with the hopper will tilt together. Raw material is mixed homogonously during tilting.
Main Features:
*hopper is recycling movable type , improve the production efficiency.
*Mixing homogeneously during container tilting, no solid particles
*Easy to change color
*Automatic positioning, lifting, fastening, releasing and lowering
*Process controlled by PLC
*Easy cleaning and maintenance
*Operation safety,High output capacity
型號及規格Specification
型號Model |
料斗容積Volume(L) |
主電機Main motor(kw) |
副電機Minor motor(kw) |
翻轉電機 Tilt motor(kw) |
PLC控制 PLC control |
|
MIC-300 |
300 |
11 |
/ |
0.75 |
yes |
|
MIC-600 |
600 |
15-18.5 |
5.5 |
1.1 |
yes |
|
MIC-1000 |
1000 |
22-30 |
7.5 |
1.5 |
yes |
|
MIC-1500 |
1500 |
30-37 |
11 |
2.2 |
yes |
|
MIC-2000 |
2000 |
37-45 |
15 |
3.0 |
yes |
|
