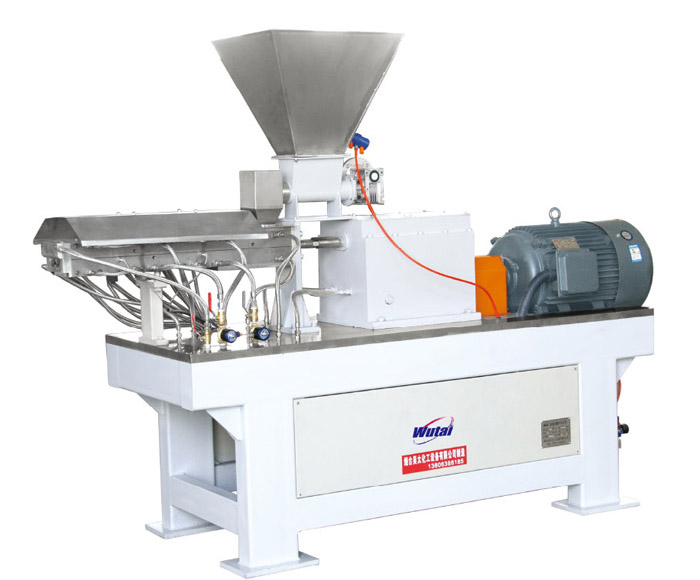

ZSJ型雙螺桿擠出機
ZSJ型雙螺桿擠出機，是雙螺桿同向旋轉結構，螺桿上的螺紋塊和混煉塊相互精密齒合作用下，將原料充分熱熔，取得混料和分散效果。
主要特點：
*高產出量和混煉效果, 光澤度比普通擠出機提高3-5度。
*機筒具有高效熱交換及溫度自動控制系統。
*機筒對開設計，清機、維修方便。

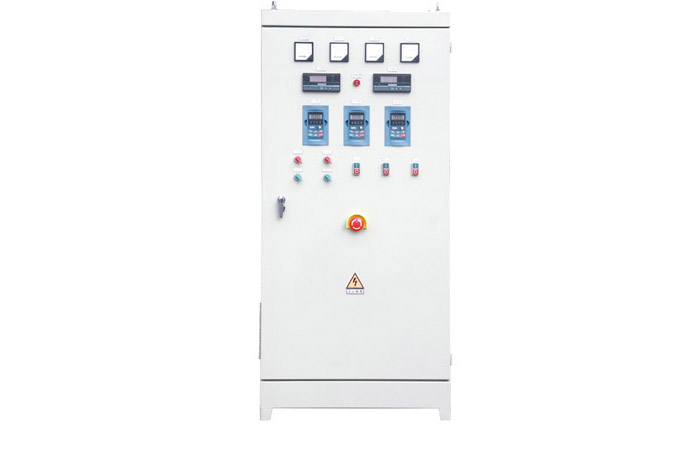

*電控模式有三種選擇：
(a)常規控制
(b)按歐洲標準設計
(c)電腦觸摸屏 PLC可編程控制
*具有優良的自清潔能力。
*進料系統備有計量螺桿，進料量準確均勻。
*操作安全可靠。
*采用先進溫控表雙向PID控制±2℃。
*螺套采用分段式襯瓦設計。
*進料口配強磁保護裝置。
*采用專用硬齒面擠出機減速箱，低噪音，高效可靠。
*油路電控自動報警（選配）。
*螺筒設有軟化水自動循環冷卻系統（選配）
*喂料采用按摩或擺動裝置，防止物料打橋架空（選配）
ZSJ series twin screw extruder
This extruder is co-rotating twin screw extruder ,materials can achieve ideal dispersed and kneaded effect after fully hot-melted under the precise intermeshing action of the conveying elements and kneading elements on the screws.
Main Features
*High output capacity and excellent mixing efficiency, glossiness can increased 3-5 degree than normal extruder.
*Clamshell barrel has high efficient heat-exchange and automatic temperature control system
*Barrel is opposite open type,easy to clean
*Hopper with screw shaft ensure the uniform feeding
*Automatic alarm of lubricating oil control system
*Advanced two way PID temperature control system with tolerance ±2℃
*The clamshell barrel cooled by automatic recycle filter water (optional equipment)
*Screw sleeve is segment liner design
*3 types electric control type for your choose
(a) Normal control
(b) design according to the EU standard.
(c) Touch screen computer display and PLC control
*Gearbox designed in lower noise and high speed
*To void the raw material jam in the hopper , the feeder is with vibrate or swing system(option equipment)
*There is strong permanent metal magnetic detector system
型號及規格Specification
型號Model |
ZSJ-43 |
ZSJ-53A |
ZSJ-53B |
ZSJ-63 |
ZSJ-73 |
ZSJ-83 |
|
產量Output(kg/h) |
100-150 |
200-300 |
300-400 |
500-600 |
600-700 |
800-1000 |
|
螺桿直徑Screw dia(mm) |
43 |
53 |
53 |
63 |
73 |
83 |
|
螺桿轉速Screw speed(rpm) |
0-500 |
0-500 |
0-500 |
0-500 |
0-500 |
0-500 |
|
長徑比Screw Length(L/D) |
15:1 |
15:1 |
15:1 |
15:1 |
16:1 |
15:1 |
|
主電機Main motor(kw) |
15 |
22 |
30 |
45 |
55 |
75 |
|
喂料電機Feeding motor(kw) |
0.37 |
0.55 |
0.75 |
1.5 |
1.5 |
2.2 |
|
加熱功率Heating power(kw) |
3 |
6 |
6 |
8 |
8 |
12 |
|
溫度控制Temperature control |
Double control by two way PID雙向溫度控制 |
|
速度控制Speed control |
By frequency inverter 變頻調速 |
|
冷卻方式Cooling method |
Direct water cooling水冷卻 |
|
外形尺寸size dimension(m) |
2.0*0.65*1.7 |
2.3*0.7*1.9 |
2.3*0.7*1.9 |
2.7*0.8*2.0 |
2.9*0.9*2.0 |
3.8*0.8*2.1 |
|
